Understanding High Pressure Steam Systems

High pressure steam systems play an essential role in facilities that depend on reliable heat, energy transfer, and mechanical power. These systems operate above the pressure used in many conventional heating applications and support demanding industrial processes, production environments, and power generation operations.

Understanding how high pressure steam systems operate helps facility teams make better decisions about boiler equipment, water quality, pressure control, safety, energy efficiency, and maintenance. The right approach can improve system reliability while helping facilities manage operating costs and protect critical equipment.

What Defines a High Pressure Steam System?

A high pressure steam system typically operates above 15 psi, although exact operating ranges depend on boiler design, process requirements, equipment ratings, and applicable standards. Low pressure steam operates at or below 15 psi and commonly serves heating and humidification applications, while high pressure steam can operate at hundreds of psi. Some specialized high pressure systems can reach 1,500 psi or higher.

High pressure boilers support manufacturing facilities, hospitals, pharmaceutical plants, food processing operations, chemical facilities, petroleum refineries, pulp and paper production, and power plants. Higher pressure gives steam greater energy density and raises its saturation temperature, allowing it to transfer substantial heat through insulated piping and support industrial applications that require high temperature and consistent energy delivery.

The boiler represents only one part of the overall steam pressure system. Feedwater equipment, water treatment, chemical feed systems, deaerators, steam headers, piping, valves, steam traps, heat exchangers, turbines, condensate return lines, and control equipment all contribute to system performance. Each component must operate within its intended pressure and temperature range to maintain safety, reliability, and efficient operation.

How High Pressure Steam Systems Work

A boiler uses a heat source to transfer energy into water until the water reaches the conditions required to generate steam. Facilities can use natural gas, fuel oil, biomass, electricity, waste heat, or other energy sources depending on the boiler technology and application. In power generation, nuclear energy can also provide the heat required for steam production.

Once produced, steam travels through headers and distribution piping toward equipment that needs thermal or mechanical energy. Industrial processes can use pressure steam for heating, drying, evaporation, sterilization, chemical processing, and other production requirements. Power generation systems can send high pressure steam through turbines, where expansion converts thermal energy into mechanical power and supports electricity generation.

After transferring its energy, steam condenses into water. Facilities can recover this condensate and return it to the boiler, reducing makeup water and the energy needed to heat incoming water. However, operators must monitor condensate quality because process contaminants can enter the return stream and affect boiler water chemistry.

High Pressure Steam vs. Low Pressure Steam

The key differences between high pressure steam and low pressure steam involve operating pressure, temperature, application, equipment requirements, and the consequences of poor control. Low pressure boilers generally serve office buildings, schools, commercial facilities, humidification systems, and other applications that need moderate heating capacity. High pressure boilers serve more demanding industrial processes where greater thermal energy or mechanical power is necessary.

Low pressure steam operates at or below 15 psi, while high pressure steam operates above 15 psi. As pressure increases, saturation temperature also increases. That relationship allows high pressure steam to deliver greater heat energy, but it also places greater demands on equipment, controls, water quality, and safety systems.

Aspect	Low Pressure Steam	High Pressure Steam
Operating pressure	≤15 psi	>15 psi; industrial systems often operate at hundreds of psi
Typical applications	Building heating, humidification, small industrial processes	Industrial processes, sterilization, power generation
Temperature	Lower	Higher
Water treatment tolerance	Generally broader	Tighter control required
Major concerns	Scale, corrosion, efficiency loss	Carryover, corrosion, tube failure, pressure-related risk
Blowdown control	Periodic or automated	Closely monitored and often automated
Equipment demands	Moderate	Higher pressure and temperature ratings

Why High Pressure Steam Matters in Industrial Processes

High pressure steam functions as both a thermal energy carrier and a mechanical driver. Its high energy density allows facilities to move heat through insulated piping networks and distribute it to multiple production areas from a central boiler plant. This capability supports economical operation across facilities with large or continuous energy requirements.

Industrial manufacturing relies on steam for many different purposes. Food processing facilities can use it for cooking, heating, drying, and sterilization. Pharmaceutical and healthcare facilities can use appropriately controlled steam for sterilization. Petroleum refining and chemical operations use steam for heating, stripping, reforming, and other processes. Pulp and paper facilities use steam during production and concentration processes, while power plants use it to drive turbines.

High pressure steam also supports long-distance energy transmission. When facilities combine efficient boiler operation, insulation, condensate recovery, and appropriate controls, they can reduce unnecessary energy losses while maintaining the steam pressure and temperature required by downstream equipment.

The Role of Water Quality in High Pressure Boilers

Water chemistry directly affects boiler efficiency, reliability, and durability. Minerals and impurities can concentrate as water evaporates, allowing hardness to form scale on heat-transfer surfaces. Scale reduces heat transfer, increases fuel consumption, creates hot spots, and can eventually contribute to tube damage. Consistent boiler water testing helps operators identify chemistry changes before they become major performance problems.

Dissolved oxygen presents another major concern because it can accelerate corrosion and create pitting on internal metal surfaces. Operators may use mechanical deaeration and chemical oxygen scavengers to control dissolved oxygen, while proper pH and alkalinity control helps maintain conditions that protect boiler components. A comprehensive steam boiler water treatment program should account for the boiler’s pressure, feedwater quality, metallurgy, load profile, and condensate recovery.

Dissolved solids require equally careful management. As the boiler produces steam, many dissolved materials remain in the water and become increasingly concentrated. Without appropriate blowdown, treatment, and monitoring, high concentrations can contribute to foaming, carryover, deposits, and reduced efficiency.

Understanding Steam Pressure and Temperature

Steam pressure and temperature work together, but operators should not treat them as interchangeable measurements. Saturated steam exists at a defined temperature for a given pressure, while superheated steam has a temperature above its saturation point at that pressure. Consequently, high pressure steam does not automatically mean superheated steam.

Higher pressure produces a higher saturation temperature, which makes pressure steam useful for high-temperature industrial applications. Some processes require saturated steam because condensation provides predictable heat transfer, while certain power generation systems use superheated steam to improve turbine performance and overall thermal efficiency.

Every component must also remain within its rated pressure and temperature limits. The maximum allowable working pressure establishes an important boundary for pressure-containing equipment, while safety valves must protect the system against excessive pressure. Operators should verify equipment ratings across boilers, valves, piping, fittings, heat exchangers, and other connected components rather than assuming the entire system shares one pressure rating.

Safety Considerations for High Pressure Systems

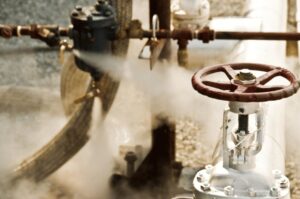

High pressure systems contain significant stored energy, so uncontrolled steam release can cause severe burns, equipment damage, and other hazards. Safety valves provide an essential protection layer and must relieve pressure within the limits established for the equipment and applicable requirements. Regular inspection, testing, and maintenance of safety devices remain essential.

Low water cutoffs provide another critical safeguard in high pressure boilers. These controls can stop firing when the water level falls below a safe point, helping prevent excessive heating of tubes and other boiler components. Operators should also monitor pressure, temperature, water level, combustion conditions, and other critical operating parameters.

Preventive maintenance should cover valves, piping, supports, insulation, steam traps, gauges, controls, and other pressure-containing equipment. Operators should investigate abnormal readings promptly because pressure swings, leaks, corrosion, wear, or control failures can increase operational risk.

What Happens When High Pressure Steam Systems Receive Poor Water Treatment?

Poor water treatment can cause scale, corrosion, foaming, carryover, and declining heat-transfer performance. These problems can increase fuel consumption, reduce production reliability, damage downstream equipment, and shorten boiler life. High pressure systems have less tolerance for chemistry drift, so small changes can produce significant consequences.

Scale forms when dissolved minerals such as calcium and magnesium remain in boiler water and deposit on heat-transfer surfaces. The resulting insulating layer forces the boiler to use more energy to produce the same steam output. Facilities can reduce this risk through appropriate softening, filtration, demineralization, internal treatment, testing, and controlled blowdown. Understanding what scale in water means can also help operators recognize why hardness control matters.

Corrosion creates another serious risk. Oxygen, unsuitable pH, contamination, and poor condensate conditions can attack metal surfaces and contribute to pitting or other forms of deterioration. A properly designed treatment program should identify the source of corrosion and address the underlying water chemistry rather than simply increasing chemical dosage.

Key Water Treatment Parameters in High Pressure Steam Systems

High pressure boilers require clear treatment targets and consistent monitoring. Important parameters can include conductivity, pH, alkalinity, hardness, dissolved oxygen, phosphate, sulfite or other oxygen scavenger residuals, silica, and other contaminants relevant to the specific system. Testing frequency should reflect operating pressure, load, feedwater quality, and process requirements.

Oxygen Control

Dissolved oxygen can create rapid corrosion and pitting, particularly at elevated temperature. Mechanical deaeration can remove much of the dissolved oxygen before water reaches the boiler, while chemical oxygen scavengers can provide additional protection. Operators need to apply the selected treatment at the appropriate feed point and verify residuals through routine testing.

TDS and Blowdown Control

Total dissolved solids increase as the boiler concentrates impurities during steam production. Excessive TDS can contribute to foaming and carryover, while inadequate blowdown can allow deposits and chemistry problems to develop. Facilities can use conductivity measurements and automated blowdown controls to maintain appropriate concentrations while avoiding unnecessary water and energy loss. Effective boiler blowdown management can therefore support both equipment protection and energy efficiency.

pH, Alkalinity, and Hardness

pH needs to remain within the range established for the specific boiler and treatment program. Low pH can increase corrosion, while excessive alkalinity can contribute to foaming or other chemistry problems. Hardness presents a direct scale risk, making feedwater pretreatment and consistent testing particularly important for high pressure systems.

Pretreatment and Feedwater Management

Water treatment should begin before water enters the boiler. Depending on the source water and required quality, facilities may use filtration, softening, reverse osmosis, demineralization, deaeration, or other treatment technologies to reduce contaminants and protect the steam-generating equipment.

Softening can remove hardness that would otherwise form scale, while filtration can reduce suspended solids. More advanced treatment may reduce dissolved minerals and other contaminants when the boiler operating pressure or steam quality requirements demand greater feedwater purity. The appropriate combination depends on water chemistry, system design, and operating requirements.

Feedwater management also needs to account for condensate recovery. High-quality condensate can reduce makeup water and energy requirements, while contaminated condensate can introduce chemicals, corrosion products, or process contaminants. Operators should monitor return quality and divert contaminated condensate when necessary.

Common High Pressure Boiler Problems

High pressure boilers can experience several operating problems when chemistry, equipment condition, or process controls drift outside their intended range. The most common concerns include carryover, scale, corrosion, poor blowdown control, condensate contamination, and inefficient heat transfer.

Carryover and Steam Contamination

Carryover occurs when boiler water travels with the steam and carries dissolved solids or treatment chemicals into downstream equipment. High TDS, foaming, poor water-level control, sudden load changes, and inadequate blowdown can contribute to the problem. Carryover can foul steam traps, heat exchangers, turbines, sterilization equipment, and other process equipment.

Facilities should maintain appropriate boiler water chemistry and steam quality controls to limit carryover. Pressure stability, water-level management, conductivity monitoring, and effective blowdown all contribute to cleaner steam.

Scale Formation and Tube Failures

Hardness and other deposits can accumulate on heat-transfer surfaces and reduce thermal efficiency. The boiler then needs additional fuel to transfer the same amount of heat, while localized overheating can increase the risk of tube damage or failure.

Operators can reduce deposit formation through feedwater pretreatment, appropriate internal treatment, testing, inspection, and controlled blowdown. Facilities should investigate recurring deposits instead of relying solely on corrective cleaning.

Corrosion and Pitting

Oxygen corrosion can damage boiler tubes, feedwater equipment, and condensate return lines. Poor pH control, contamination, and unsuitable treatment conditions can increase the risk. A combination of deaeration, oxygen scavenger treatment, corrosion monitoring, and routine chemistry testing helps operators identify and control these conditions.

Blowdown, Energy Efficiency, and Operating Cost

Blowdown removes concentrated boiler water and replaces it with lower-solids feedwater. The process protects water chemistry, but excessive blowdown also removes heated water and treatment chemicals from the system. Too little blowdown, meanwhile, allows dissolved solids to accumulate.

Facilities can improve energy efficiency by using conductivity-based controls, appropriate blowdown settings, and accurate operating records. Automated systems can adjust blowdown as conditions change, reducing unnecessary water and energy loss while maintaining the desired chemistry range.

Energy efficiency also depends on combustion performance, insulation, steam leaks, steam trap condition, condensate recovery, and heat recovery. Capturing waste heat from appropriate sources can further reduce fuel demand. A complete efficiency review should therefore examine the boiler and distribution network as one connected system.

Steam Distribution and Condensate Recovery

Steam distribution systems need proper insulation, correctly sized piping, reliable valves, and functioning steam traps. Heat loss from poorly insulated lines reduces the energy available to downstream equipment and can increase fuel consumption. Leaking valves and malfunctioning traps can create additional losses.

Condensate recovery provides an opportunity to return hot water to the boiler instead of replacing it entirely with cold makeup water. The recovered water already contains useful thermal energy, so returning clean condensate can reduce the energy required to produce new steam.

However, condensate quality must remain under control. Process contamination can introduce unwanted chemicals or solids into the boiler, so facilities need appropriate monitoring and procedures for handling questionable return streams.

Monitoring and Maintenance Best Practices

High pressure steam systems need consistent testing because small chemistry changes can quickly affect performance. Operators should establish a testing schedule based on pressure, load, feedwater quality, treatment chemistry, condensate recovery, and process requirements rather than relying on a one-size-fits-all frequency.

Routine testing may include conductivity, pH, alkalinity, hardness, oxygen scavenger residuals, dissolved oxygen, phosphate, and other system-specific parameters. Operators should document results alongside chemical feed rates, blowdown, makeup water, condensate recovery, fuel use, pressure, and temperature. Trending these measurements can reveal gradual changes that individual readings might miss.

Equipment inspections should cover safety valves, low water cutoffs, gauges, controls, piping, valves, steam traps, insulation, pumps, and other critical components. Facilities with demanding operating requirements can also use water treatment automation to improve monitoring, control, and response time.

Matching Treatment to System Design

No two high pressure steam systems operate under exactly the same conditions. A steady-load industrial boiler can have very different requirements from a system that cycles frequently, serves multiple process loads, or operates with inconsistent makeup water.

Treatment decisions should consider boiler pressure, capacity, condensate recovery, cycle rate, metallurgy, feedwater quality, steam quality requirements, and process demand. A 300 psi boiler with high-quality RO-treated makeup water and strong condensate recovery may need a different treatment strategy from another 300 psi boiler that receives variable-quality makeup water and returns little condensate.

Facilities should also consider the relationship between treatment, equipment condition, and operating data. A change in fuel consumption, conductivity, chemical demand, condensate quality, or steam pressure can indicate a developing problem. Reviewing those trends helps operators move from reactive maintenance toward predictive system management.

When Automation Makes Sense

Automation can improve consistency in high pressure systems that require tight control. Conductivity-based blowdown, automated chemical feed, alarm systems, online sensors, and remote monitoring can give operators faster visibility into changing conditions and reduce reliance on manual adjustments.

Automation does not eliminate the need for testing or operator oversight. Sensors require calibration, equipment needs maintenance, and personnel still need to understand what the data means. The best results come from combining automation with documented procedures, accurate testing, and trained operators.

Facilities can also use corrosion monitoring to identify changes that may not immediately appear through routine boiler water testing. Early detection gives operators more opportunity to correct the underlying condition before corrosion affects critical equipment.

Choosing the Right High Pressure Steam Strategy

An effective high pressure steam program starts with the actual requirements of the facility rather than simply selecting the highest possible operating pressure. Operators should evaluate production needs, boiler capacity, pressure requirements, water quality, fuel costs, condensate recovery, equipment condition, safety requirements, and desired energy efficiency.

Water treatment should match the system’s operating conditions. Pretreatment can reduce contaminants entering the boiler, internal treatment can maintain appropriate boiler water chemistry, and blowdown can control dissolved solids. Steam quality monitoring and condensate management add further protection for downstream equipment.

R2J Chemical Services can help facilities evaluate water treatment requirements, operating conditions, and maintenance needs. A properly designed program can help reduce corrosion, scale, carryover, unnecessary energy consumption, and unplanned downtime while supporting reliable production.

Steps to Manage a High Pressure Steam System Effectively

Start by documenting the boiler’s operating pressure, capacity, maximum allowable working pressure, fuel source, feedwater quality, condensate recovery, steam users, and equipment ratings. Next, establish treatment targets for pH, conductivity, hardness, alkalinity, dissolved oxygen, and other relevant parameters, then create a consistent testing and chemical feed schedule. After that, monitor pressure, temperature, water level, steam quality, blowdown, condensate quality, and energy use so operators can identify changes early.

The next step involves inspecting safety devices, valves, piping, steam traps, insulation, controls, and heat-transfer equipment while maintaining accurate operating records. Facilities should review those records regularly to identify trends in fuel consumption, chemistry, pressure, corrosion, or production performance. Finally, adjust treatment, automation, maintenance, and operating practices as system conditions change rather than waiting for equipment failure.

For facilities that need a more reliable and efficient approach to high pressure steam, R2J Chemical Services can help develop a water treatment and monitoring strategy matched to your boiler, process, and operating conditions. Contact us today to discuss your system and find the right solution.
