Galvanic Corrosion in Closed Loop Water Systems

In a lot of facilities, corrosion problems don’t announce themselves loudly. They develop quietly, behind insulation, inside piping, or at connection points no one looks at until something fails. One of the most common examples we see in the field is galvanic corrosion. It shows up in systems that otherwise appear stable and well maintained, which is why it often goes unnoticed for so long.

Closed loop systems, in particular, tend to create a false sense of security. Because they are sealed and designed to limit oxygen, teams often assume metal corrosion is unlikely or at least slow enough to ignore. In reality, mixed materials, inconsistent water chemistry, and small design decisions can create conditions where corrosion progresses steadily without obvious warning signs.

The challenge is not that galvanic corrosion is rare. It’s that it blends into normal operation until performance drops or components fail. Recognizing it as a real operational risk is the first step toward protecting system reliability and long-term equipment life.

What Galvanic Corrosion Is and Why It Happens

Galvanic corrosion, sometimes called galvanic corrosion, is a form of metal corrosion that develops when two dissimilar metals are connected to each other under the right conditions. Those conditions are more common than most teams realize. When the metals are in electrical contact and there is a presence of an electrolyte, usually water, the system sets itself up for an electrochemical process to begin.

At that point, the metals effectively form a galvanic cell. One metal gives up electrons more readily, while the other accepts them. The metal that gives up electrons starts to degrade, often in a very localized area, while the other remains relatively protected. Nothing dramatic happens right away. There is no sudden leak or alarm. The damage builds slowly at joints, fittings, or fasteners where the metals meet.

What makes this type of corrosion easy to miss is that it does not require aggressive water conditions or visible rust across an entire surface. It only requires the right combination of materials, contact, and water to quietly move from normal operation into long-term damage.

The Electrochemical Mechanism Behind Galvanic Damage

At the core of galvanic damage is a simple but powerful imbalance between metals. When different metals are connected in water, each one behaves differently at the atomic level. The anodic metal is the more active material. It gives up electrons and begins to break down. The cathodic metal is less reactive, so it accepts those electrons and remains protected.

This exchange creates a measurable galvanic current that flows between the metals. As long as water is present to carry that charge, the corrosion cell stays active. Over time, this ongoing electrochemical reaction drives localized material loss at the anodic surface. Iron, zinc, or aluminum atoms leave the metal and enter the water as metal ions, which is why early corrosion often shows up as discoloration, deposits, or fine rusting near connections.

From an operator’s perspective, these corrosion reactions usually appear in predictable places. You see thinning pipe walls near dissimilar metal joints, fasteners that deteriorate faster than surrounding steel, or pitting around heat exchanger connections. The rest of the system may look fine, which makes the issue easy to underestimate. But once this current is established, it does not stop on its own. Without intervention, the anodic component continues to sacrifice itself until performance or structural integrity is compromised.

Dissimilar Metals in Real Systems: Where Problems Start

In theory, galvanic issues sound like a design textbook problem. In practice, they show up in mechanical rooms, pipe chases, and equipment skids every day. Most closed loop systems are built using dissimilar metals because each material brings a different strength, cost advantage, or performance benefit. Copper for heat transfer, carbon steel for structure, stainless for durability. The trouble starts when different metals are placed in direct contact with one another.

Any time two metals are mechanically joined, whether through threaded fittings, flanges, or fasteners, there is an opportunity for galvanic activity. When those connections involve dissimilar materials, the risk increases significantly. This is especially true in areas where water is always present, such as pump connections, heat exchanger headers, or low-point drains.

This form of attack is often referred to as bimetallic corrosion, sometimes called bimetallic corrosion in design documents. It does not require system-wide exposure. It only needs one vulnerable junction. Over time, those small interfaces become the weak points that drive leaks, structural loss, and unexpected maintenance in otherwise well-designed systems.

Common Galvanic Pairings That Cause Accelerated Corrosion

Certain galvanic pairings show up so consistently in the field that most experienced operators recognize the symptoms right away. These combinations are common in both new installations and older systems that have been modified over time. When incompatible materials are brought together without isolation, corrosion tends to concentrate at the exact points where reliability matters most.

• Copper pipe connected to galvanized steel often fails at threaded joints. The zinc coatings on the galvanized surface act as a sacrificial layer and begin to break down first. Once that protection is lost, the steel underneath deteriorates quickly, usually out of sight.
• Stainless steel fasteners installed on carbon steel supports create another frequent problem area. Because stainless steel is far more corrosion resistant, the surrounding carbon steel becomes the sacrificial material. Operators typically notice rusting, flaking, or metal loss around bolt holes and washers.
• Stainless steel components added to existing systems can unintentionally create new galvanic pairs. While stainless steel performs well on its own, introducing it alongside less resistant materials without isolation often leads to accelerated corrosion in adjacent piping or structural members.

These failures rarely spread evenly across a surface. They develop at specific connection points, which is why systems can appear sound overall while quietly losing integrity at critical joints.

Why Closed Loop Systems Are Especially Vulnerable

It’s common to hear that closed loop systems are low risk when it comes to corrosion. After all, they are sealed, oxygen is limited, and water is reused rather than constantly replenished. In reality, that sense of safety is often misplaced. While corrosion may develop more slowly, it does not stop. It simply becomes harder to see.

Once a system is filled, the water inside becomes an electrolyte solution. If mixed metals are present, the conditions for galvanic activity already exist. Even without frequent makeup water, corrosion occurs steadily at connection points where materials differ. Small leaks, pressure losses, or maintenance events introduce fresh oxygen and increase conductivity, allowing reactions to continue over long periods.

The galvanic corrosion effect is especially persistent in closed loops because the system is not regularly flushed. Corrosion products and dissolved metals remain in circulation, influencing local chemistry and pushing corrosion rates higher at vulnerable interfaces. Operators may not notice a problem until flow is restricted, heat transfer drops, or a localized failure finally breaks containment. By the time symptoms appear, damage has usually been building for years.

How Galvanic Corrosion Develops Over Time in Closed Loops

Galvanic corrosion in closed loops rarely happens all at once. Instead, it develops gradually, quietly undermining system components over months or even years. The process begins when two metals of different nobility come into contact and water or another conductive fluid is present. The less noble metal, often carbon steel or aluminum, acts as the active metal and begins to corrode, while the noble metal, like copper or stainless steel, remains largely protected.

Once the initial galvanic reaction starts, it creates a small current between the metals. At first, the damage is subtle: slight discoloration, minor deposits, or barely noticeable thinning at joints. Over time, this ongoing current accelerates material loss, concentrating corrosion at fittings, flanges, fasteners, and other connection points.

Even if the rest of the system looks intact, the weakened active metal eventually shows signs of structural compromise. By the time visible problems appear, significant damage may have already occurred. Many operators only recognize that galvanic corrosion occurred after leaks, pitting, or unexpected failures reveal the hidden electrochemical activity that has been quietly progressing all along.

The Role of Water Chemistry and Electrolyte Composition

Water chemistry plays a central role in how quickly metal corrosion develops in closed loop systems. The water circulating through pipes and equipment acts as the electrolyte solution that enables a galvanic reaction. If the water contains high levels of dissolved salts, chlorides, or sulfates, it becomes a corrosive electrolyte, making even small galvanic pairs prone to attack.

The electrolyte composition affects corrosion in several ways. Low or unstable pH can make metals more reactive, while elevated conductivity allows galvanic current to flow more freely between the less noble metal and its protected counterpart. Even in systems designed to limit oxygen, micro-leaks or improperly treated makeup water can change the water chemistry enough to trigger localized attack.

Monitoring water chemistry is essential to catch these problems before visible damage occurs. Regular testing provides corrosion data that helps operators identify trends, verify inhibitor performance, and adjust chemical dosing as needed. Teams often start with basic measurements like pH, conductivity, and total dissolved solids, then follow up with targeted metal analysis. For facilities managing boilers or heat exchangers, understanding how water chemistry drives corrosion is critical. Learn more in our guide on boiler water testing.

Understanding the Galvanic Series and Anodic Index

One of the most effective ways to minimize galvanic corrosion is to understand how metals behave relative to each other. Engineers and operators often reference the galvanic series, a ranking of metals from the most reactive (less active metal) to the least reactive (more noble metal) in a given electrolyte. This ranking helps predict which materials are likely to corrode when paired together.

The anodic index is another useful tool. It quantifies the voltage difference between two metals, showing the potential for a galvanic reaction. When one metal sits far lower on the scale than other metals it contacts, it becomes the sacrificial component, corroding faster than expected.

Practical use of these tools is straightforward. Selecting materials close together on the galvanic series reduces risk. When dissimilar metals must be used, the design can incorporate isolation, coatings, or inhibitors to protect the less active metal. Understanding where metals fall on these charts allows operators and designers to make informed choices, preventing small connections from becoming major failure points over time.

Surface Area Effects and Why Small Parts Fail First

One detail that often surprises operators is how relative surface area influences galvanic corrosion. Even when the metals themselves are compatible, a small piece of anodic metal in contact with a much larger cathode metal can corrode much faster than expected. This is why a tiny bolt may fail while the pipe or structural member it’s attached to looks fine.

The principle is simple: the smaller anodic surface concentrates the galvanic current, accelerating material loss at that junction. Meanwhile, the larger cathode metal remains largely unaffected, giving the appearance that corrosion is localized rather than systemic.

Because of this effect, connection points, fasteners, and small fittings are often the first to show significant corrosion, even in well-maintained systems. Operators who understand this pattern can focus inspections on these high-risk spots, catching early damage before leaks, failures, or structural compromise occur. It’s a small-scale problem with big implications for long-term system reliability.

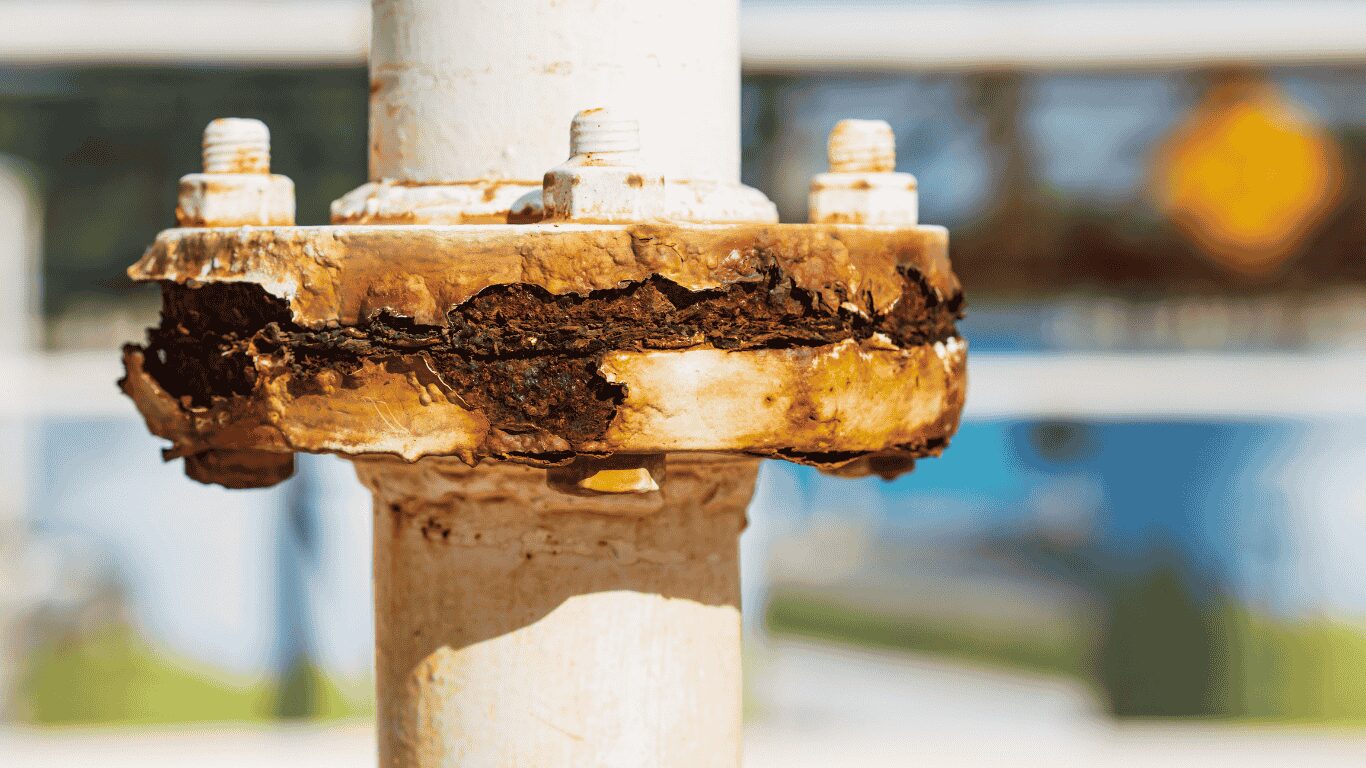

Crevices, Joints, and Structural Connections

Galvanic corrosion often hides in plain sight, concentrating at structural connections, joints, and other areas where metals meet. These spots are prone to crevice corrosion, a localized form of attack that develops when water, oxygen, and contaminants accumulate in tight spaces. Even small gaps between flanges, washers, or overlapping plates create microenvironments that accelerate degradation.

The key driver is electrical contact between dissimilar metals. When a more active metal touches a more noble one, the galvanic current flows across the metal surface, and the anodic areas corrode faster than the rest of the system. Over time, what begins as a tiny pit or stain can expand into significant material loss.

Operators often overlook these failure points because the rest of the system appears intact. Regular inspection of joints, threaded connections, and structural fasteners combined with proper isolation, coatings, or chemical protection can catch early corrosion before it undermines system reliability or causes unexpected downtime.

Heat Exchangers and Mixed-Metal Assemblies

Heat exchangers are particularly vulnerable to galvanic corrosion because they often combine multiple metals in tight spaces. Tubes, headers, and frames may include stainless steel, copper, or aluminum, all joined to a steel substrate. When these metallic structures are exposed to water with high conductivity or imbalanced chemistry, corrosion can concentrate at the junctions between dissimilar metals.

Even minor galvanic activity can have noticeable effects on performance. Localized degradation increases corrosion rates, reducing heat transfer efficiency and causing uneven flow through the exchanger. Over time, pitting or thinning at connection points can lead to leaks, system downtime, or costly repairs.

Mixed-metal assemblies in other equipment, such as skids, pumps, or piping manifolds, face similar risks. Small, high-value components often corrode first, quietly undermining the overall system. Operators who understand where heat exchangers and other metallic structures intersect can target inspections, monitor

Marine and High-Conductivity Environments

Galvanic corrosion becomes even more aggressive in marine environments, where saltwater acts as a highly conductive electrolyte. In these conditions, the voltage difference between metals drives rapid deterioration, and damage can appear in a matter of weeks rather than years.

Common examples include aluminum hulls in contact with steel hulls or copper skin. The aluminum, being the more active metal, corrodes quickly, while the steel or copper remains protected. This uneven degradation can compromise structural integrity, create leaks, and lead to costly repairs or downtime.

High-conductivity systems aren’t limited to boats. Facilities using salt-based water softeners or recirculating systems with high dissolved solids can experience similar effects. Even a small galvanic pair in these conditions, like a stainless steel fitting attached to a carbon steel pipe, can suffer accelerated corrosion. Understanding how marine environments or high-conductivity water magnify the problem is essential for designing protective strategies and preventing early failure.

Design Choices That Increase Galvanic Risk

Many galvanic problems are preventable with thoughtful design, yet certain choices consistently create trouble. Anytime direct contact occurs between dissimilar metals without consideration for electrical isolation, a galvanic coupling forms. Small decisions, like using stainless steel fasteners on carbon steel supports or combining copper tubing with aluminum fittings, can start corrosion quietly and accelerate material loss.

Breaking the galvanic circuit is simple in principle. Designers and contractors can electrically insulate metals at connection points, using dielectric gaskets, bushings, or sleeves. Coatings and sleeves on fasteners or pipe connections also help electrically insulate critical junctions. Without these precautions, currents flow freely between metals, driving the anodic material to degrade faster than anticipated.

For engineers reviewing piping layouts, heat exchangers, or structural assemblies, paying attention to galvanic coupling at every junction is critical. These small, often overlooked design choices determine whether a system remains reliable for decades or starts to experience localized corrosion almost immediately.

Operational Factors That Accelerate Galvanic Corrosion

Even the best-designed system can experience problems if operational conditions are not managed carefully. Accelerated corrosion often results from factors that change over time rather than initial design flaws. When water chemistry drifts, inhibitors degrade, or oxygen enters the loop through leaks or maintenance, corrosion occurs faster than expected.

High temperatures, pressure fluctuations, and stagnant zones all increase corrosion rates by enhancing chemical activity and galvanic currents. Metal corrosion tends to concentrate at small connection points, fittings, and fasteners, making early detection challenging. Systems with multiple dissimilar metals are especially vulnerable because even minor changes in conductivity or pH can trigger localized damage.

Routine monitoring is essential to catch these trends before they cause significant failures. Checking inhibitor levels, water conductivity, and visible signs of rust or deposits helps operators identify hotspots. By understanding the operational conditions that accelerate corrosion, maintenance teams can intervene early, adjust treatment strategies, and preserve the longevity of the system’s components.

How to Prevent Galvanic Corrosion Through Material Selection

One of the most effective ways to prevent galvanic corrosion is making smart material choices during system design. Selecting metals that work well together reduces the chance of harmful galvanic reactions and helps minimize galvanic corrosion without relying solely on chemical treatment.

A key tool in this process is the galvanic series, which ranks metals from most active to most noble. Pairing metals close together on this scale lowers the risk of corrosion, while combining metals far apart increases it. When different metals must be used, for example, copper for heat transfer and carbon steel for structural support, engineers can plan for isolation, coatings, or inhibitors to protect the more active metal.

Other strategies include standardizing metallurgy across piping, fittings, and heat exchangers whenever possible, and avoiding small anodic components in contact with large cathodic surfaces, which can accelerate localized attack. By carefully considering material compatibility upfront, teams can dramatically reduce risk, extend equipment life, and create systems that are inherently more corrosion-resistant from day one.

Electrical Isolation and Physical Separation Strategies

When direct contact between dissimilar metals is unavoidable, the next best line of defense is electrical isolation. By breaking the galvanic circuit, you stop the flow of electrons that drives corrosion, protecting the more active metal from accelerated loss.

Operators can electrically insulate connections using dielectric unions, non-conductive gaskets, bushings, or sleeves on fasteners and pipe joints. Even simple measures, like adding plastic washers or coatings at high-risk points, can make a meaningful difference. In some systems, a galvanic isolator can be installed to prevent current flow across metal interfaces while maintaining structural integrity.

Physical separation also helps. Avoid overlapping metals that trap water or debris, and ensure that small anodic components are not overwhelmed by larger cathodic surfaces. For heat exchangers, skids, or mechanical racks, thoughtful placement and isolation of metals reduces stress points and prolongs equipment life. By combining electrical isolation with careful system layout, operators can significantly reduce the risk of galvanic corrosion, even when multiple metals must coexist in the same loop.

Chemical Treatment and Corrosion Inhibitors

Even with careful material selection and isolation, some galvanic risk remains in most closed loop systems. Corrosion inhibitors are essential because they create a protective barrier on metal surfaces, helping metals resist corrosion and slowing the electrochemical reactions that drive damage.

• A well-designed chemical program can prevent corrosion across multiple metals at once, protecting both anodic metal and cathodic metal surfaces in systems with carbon steel, copper, aluminum, or stainless steel.
• Some formulations complement metallic coatings, adding an extra layer of defense at high-risk points like fasteners, heat exchanger tubes, or junctions between dissimilar metals.
• Regular monitoring ensures inhibitors remain effective. Without consistent dosing and system checks, the protective film can degrade, leaving metals exposed to accelerated corrosion and localized damage.
• When applied alongside smart material selection, proper isolation, and system design, chemical treatments become a critical line of defense, helping operators extend equipment life and maintain system reliability in closed loops.

Monitoring Water Chemistry to Catch Issues Early

Even the best-designed and treated systems need regular monitoring to stay ahead of corrosion. Tracking corrosion data over time gives operators a clear picture of how metals are performing and where adjustments are needed. Key indicators include metal ions in the water, pH levels, conductivity, and inhibitor residuals. Rising concentrations of iron, copper, or zinc can signal that corrosion rates are increasing, even before visible damage appears.

Routine sampling at critical points: near pumps, heat exchangers, and connection points helps identify early signs of galvanic activity. Trending this data allows operators to adjust chemical dosing, correct pH imbalances, or address localized issues before they become system-wide failures.

For facilities managing boilers or complex closed loop systems, consistent water monitoring is essential to long-term reliability. Operators often pair data collection with preventive maintenance strategies to keep corrosion under control. To learn more about proactive monitoring and protection, see our guide on strategies for effective boiler corrosion prevention.

Oxygen Control and Why It Still Matters in Closed Loops

Many operators assume that closed loops are safe from oxygen-related corrosion. In reality, even small amounts of oxygen can have a big impact because water serves as the presence of an electrolyte that enables corrosion reactions. Micro-leaks, fill water, or poorly vented expansion tanks allow oxygen to enter, fueling localized attack.

When oxygen reaches areas where dissimilar metals meet, it accelerates the electrochemical process. The accelerated corrosion occurs at the anodic metal, often at joints, fasteners, or crevices, while the cathodic metal remains protected. This localized attack can compromise structural integrity long before the rest of the system shows signs of wear.

Maintaining low oxygen levels through deaeration, scavengers, or proper system venting helps suppress galvanic currents. Operators who monitor oxygen alongside water chemistry can catch early corrosion trends and prevent small galvanic reactions from becoming significant maintenance issues. In closed loops, oxygen control is not optional. It is a critical part of long-term system reliability.

When Cathodic Protection Makes Sense

Cathodic protection can be a valuable tool in systems where galvanic corrosion risk is high, especially for metals that are consistently exposed to an electrolyte. The method works by turning the entire metal surface into a cathodic metal, preventing it from losing electrons and slowing corrosion. It is most effective when combined with proper design, isolation, and chemical treatment rather than used as a standalone solution.

Common applications include steel structures with zinc coatings or critical piping that cannot be electrically insulated. In these cases, sacrificial anodes or impressed current systems help shield the protected metal while the sacrificial material corrodes instead. Operators should view cathodic protection as one layer in a multi-pronged strategy, targeting areas where small galvanic pairs could otherwise degrade quickly.

Early Warning Signs Operators Should Watch For

Often, the first signs that galvanic corrosion occurred are subtle, but paying attention can save major headaches down the line. Operators should look closely at the metal surface around joints, fasteners, and fittings. Discoloration, rust streaks, or flaking metal often indicate that a small, localized spot is already undergoing attack.

Other hints include unusual debris in strainers, rapid loss of inhibitor, or small leaks forming where significant corrosion has weakened a component. Even if the rest of the system looks fine, these warning signs usually appear at the most vulnerable points: tiny bolts, threaded fittings, or crevices where dissimilar metals touch.

Checking these areas during routine rounds or maintenance visits helps catch problems early. Operators who respond quickly to early signs can prevent localized damage from spreading, extend component life, and maintain the reliability of the system before more obvious failures occur.

How R2J Helps Facilities Reduce Galvanic Risk

At R2J, we help facilities prevent galvanic corrosion through a combination of system assessment, tailored treatment programs, and practical design guidance. Our team evaluates piping, heat exchangers, and structural components to identify where dissimilar metals meet and where galvanic currents are most likely to form. We then recommend strategies such as electrical isolation, optimized material pairings, and targeted use of corrosion inhibitors to protect both anodic metal and cathodic metal surfaces. This comprehensive approach helps maintain the integrity of your system and reduces the risk of costly failures.

If you want to protect your system from hidden damage and extend the life of critical components, now is the time to act. Our experts work directly with operators to implement solutions that stop corrosion before it starts, monitor water chemistry, and keep your metals safe.

Don’t wait for significant corrosion to appear. Reach out to R2J today and take proactive steps to safeguard your closed loop systems.
