Closed Loop Control Systems in HVAC Water Treatment

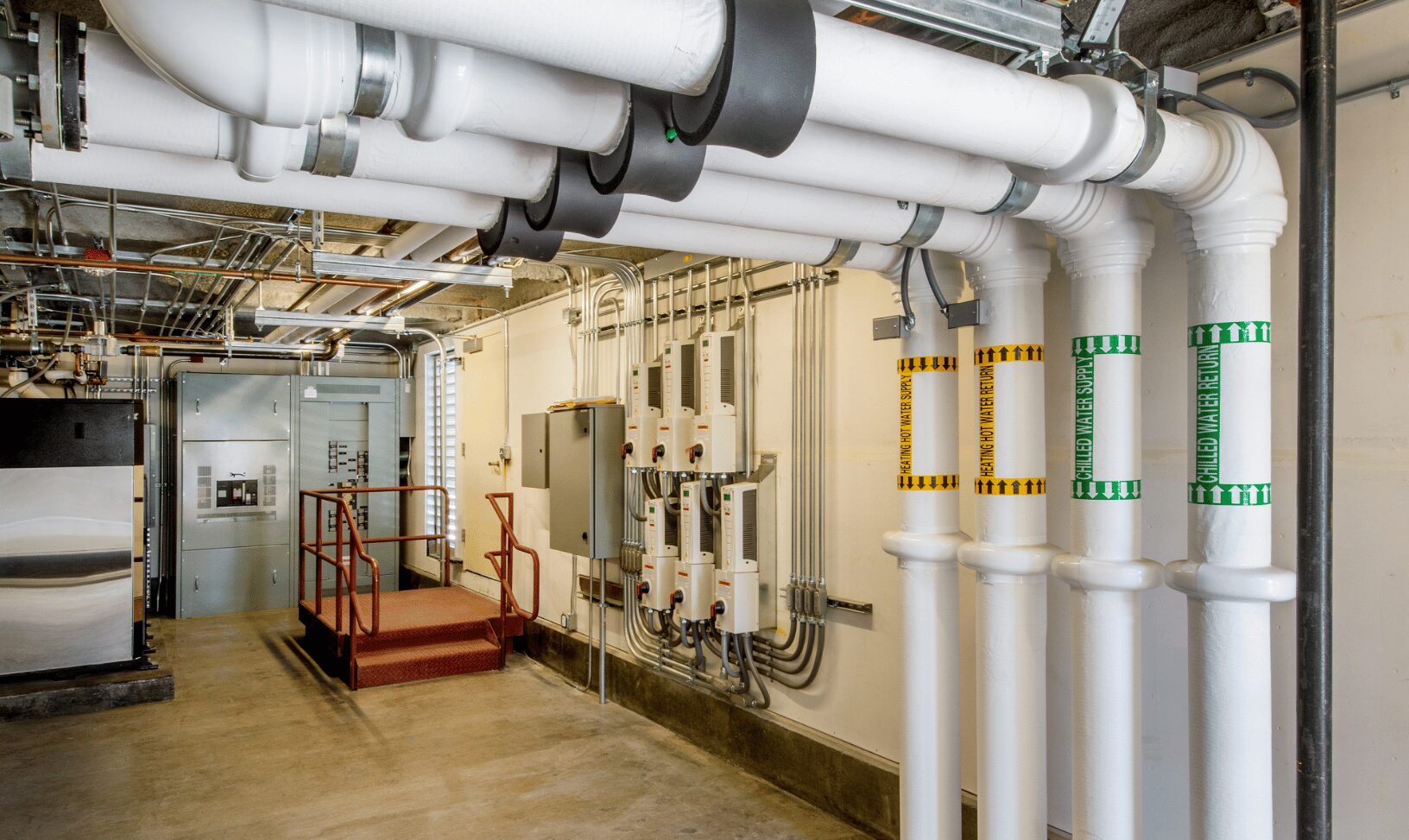

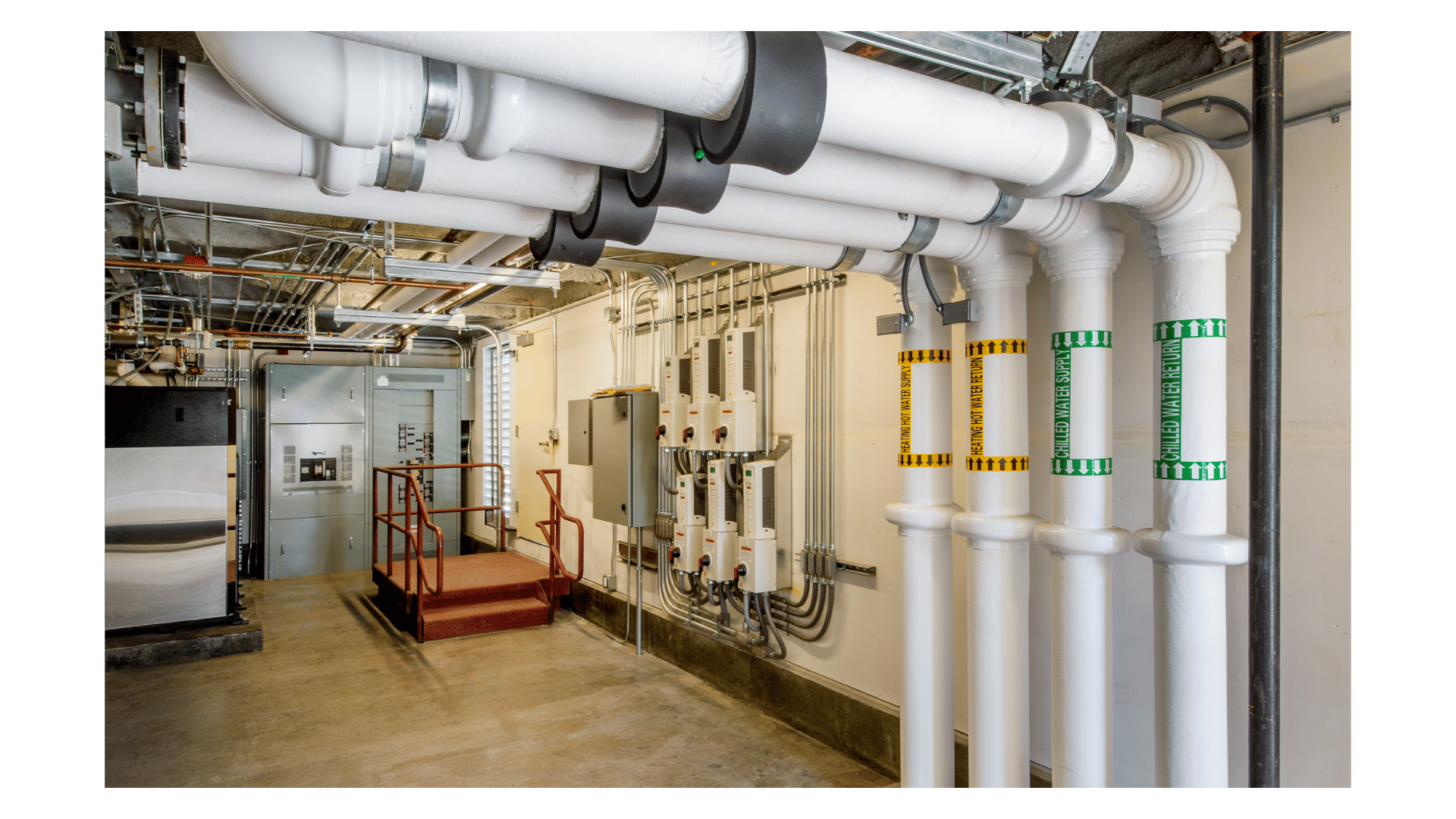

What Closed Loop Control Means in HVAC Water Treatment

In the context of water treatment, closed loop control systems most commonly refer to the way facility teams manage chilled water, hot water heating, or glycol loops in commercial HVAC systems.

These loops are sealed–or close to it–but they still need protection. Oxygen leaks in. Water gets added. And without control, chemistry drifts.

What operators are really managing is a long-running chemical process: holding corrosion inhibitors, pH, glycol concentration, and microbiological risk inside target ranges. That’s where control comes in. You’re not programming automation. You’re testing, adjusting, and confirming. That’s a feedback loop, even when it’s not wired into a building automation system.

Why Water Quality Control Still Matters in “Sealed” Loops

It’s a myth that closed loops are maintenance-free. The reality: once chemistry drifts, it stays off for weeks–unless someone notices and takes action.

Here’s what can go wrong without proper control:

• Corrosion: Oxygen ingress or inhibitor depletion causes iron pickup and pitting
• Plugging: Particulates foul strainers, coils, or flow meters
• Instability: pH or glycol levels swing out of range, damaging assets
• System inefficiency: Heat transfer performance drops quietly over time

A closed loop control system in this setting is about discipline–not electronics. You hold a set point, track controlled variables, and act when the error signal (difference between target and test result) is outside limits. The next test is your feedback signal. This is process control, applied in water chemistry.

Closed Loop vs. Open Loop: Control Requirements Are Different

Open loops (like cooling towers) deal with constant makeup and frequent blowdown. Chemistry gets reset naturally.

A closed loop system does the opposite: chemistry stays static unless something disturbs it. That means disturbances have a longer shelf life–and are harder to detect.

Unlike an open loop control system, where you can often see effects quickly, closed systems demand a loop control approach over time. A leak, a top-off, or an unreported repair can throw the loop off-spec for weeks.

Not sure how closed loop water treatment compares to open loop systems? Here’s a quick breakdown:

Characteristic	Closed Loop System	Open Loop System
Water Turnover	Minimal; stays in system	High; constant inflow/outflow
Chemical Loss	Low unless system disturbed	Ongoing via blowdown or drift
Control Approach	Test → Adjust → Confirm	Dose → Monitor → Reset
Typical Risks	Corrosion, glycol drift, stagnation	Scale, biological fouling, corrosion
Sampling Frequency	Weekly–monthly	Daily or continuous
Automation Required?	Helpful but not required	Often automated

For a breakdown of how treatment approaches vary, read our article about closed loop vs open loop systems.

Operators Still Control the System

Control doesn’t always require a controller.

In most HVAC plants, control comes from test results and a treatment plan. The control system is your test kit, logbook, chemical pump, and decisions. As long as those inputs and outputs stay aligned, you’re in control.

And when they don’t? The feedback loop tells you what needs to change–before damage or downtime do.

How Loop Control Works in Water Chemistry

Most closed loop systems don’t have a literal “controller” – but the team running the system still operates a closed loop control system.

The loop begins with set points: target ranges for key controlled variables like inhibitor residual, pH, glycol %, and microbial activity. These aren’t just technical specs – they’re the chemistry conditions that protect metal, control fouling, and prevent downtime.

Operators collect test results (the input signal) and compare them against those targets (the reference input). When something’s off, that difference is the error signal – and it triggers a control action: a small inhibitor dose, a pH adjustment, or further testing to confirm what’s changing.

Here’s how control terms apply to real-world water treatment actions:

Term	What It Means in Water Treatment	Example in Practice
Reference Input	Your target or set point	pH = 9.2–9.8
Input Signal	Field test or sensor reading	Sample shows pH = 8.6
Error Signal	Difference between target and result	pH off by -0.6
Control Signal	Instruction to correct the issue	Add 10 oz buffer
Controller Output	What the pump or valve delivers	Pump runs for 3 minutes
Output Signal	The resulting water chemistry	pH = 9.4
Feedback Signal	Retest that confirms correction	Next test = 9.6
Process Output	System performance or risk reduction	No alarms, less iron pickup

Defining Set Points for Your System

Each loop has a different risk profile. One size doesn’t fit all. But every system should have a defined reference for each treatment area:

• Inhibitor residual (e.g., nitrite or molybdate): protects steel
• pH range: tailored to loop metallurgy and treatment chemistry
• Glycol concentration: freeze protection, heat transfer, and viscosity
• Microbial control: low counts or no growth in closed circuits
• Turbidity/solids: should remain low in clean loops

These are your reference inputs–and the more precisely you define them, the easier the loop is to control. Without set points, you’re just reacting.

How Operators Close the Loop

The “loop” in loop control comes from taking action and verifying results.

Let’s break it down:

1. Test the fluid (field or lab)
2. Compare to target (reference input)
3. If off-target, calculate the error signal
4. Dose (your control action)
5. Let the system mix
6. Retest and confirm (feedback signal)
7. Record the controller output – the volume added, pump stroke, or flow rate used

That’s a feedback control system, even if you’re running it with a test kit, not a digital controller.

What Happens Without Feedback

Without this loop, you’re operating an open loop control system: you add chemical but never confirm the result. The risk?

• Overshooting your set point – wasted chemical, fouling
• Underdosing – corrosion, microbio growth, asset failure
• Uncertainty – no clear direction for what to do next

Open loop strategies are sometimes needed during startup, major repairs, or flushing. But to protect a closed loop system over time, feedback control is what keeps you on target.

What Throws Water Chemistry Off Balance

Even in a closed loop system, chemistry doesn’t stay static forever. Minor leaks, oxygen ingress, unreported makeup water, and chemical degradation can all knock values off target. These changes don’t happen quickly–but they do compound over time.

That’s why a closed loop control system is less about chasing numbers and more about catching drift before it becomes damage.

Common Disturbances

1. Oxygen ingress

Loose connections, poorly pressurized expansion tanks, or failed vacuum breakers introduce oxygen, which accelerates corrosion.

2. Untracked makeup water

After a coil replacement or mechanical repair, maintenance teams might top off the loop without notifying the treatment provider. New water dilutes the inhibitor and changes pH or glycol concentration.

3. Glycol degradation

Older glycol blends break down, especially under high temperatures. That creates organic acids that reduce pH and increase chemical demand.

4. Improper dosing

Feeding without verifying volume, flow, or residuals results in overshooting–or worse, underfeeding. That leaves metals unprotected.

Each of these is a system input that alters the process output (your test results). The longer it goes unchecked, the more correction is required–and the harder it becomes to isolate the root cause.

A Signal-Based Way to Spot Drift

Control isn’t just about chemistry–it’s about how quickly you notice a problem.

Treat every test as a measured output. If it’s outside range, you’re seeing an error signal–a mismatch between the reference input (your target) and what’s really happening in the loop.

Then ask:

• Was there any recent work that added makeup?
• Did your last control action produce the desired output?
• Are your controller outputs (dose amounts, timing) doing their job?
• Have the test results leveled out–or are they still drifting?

This is basic feedback logic. It doesn’t require a PLC–it requires attention and documentation.

How to Catch Problems Before They Become Expensive

A good loop control system helps you spot issues before they cause system damage.

Use this cadence:

• Trend test results weekly or monthly (depending on loop size and risk)
• Track the amount and timing of all chemical additions
• Match each feedback signal (retest) to its last control action
• If values swing hard after small inputs, reassess your pump sizing and system parameters

Also: always record system input events–especially repairs, glycol top-offs, and makeup water additions. Most chemistry problems start here.

If You Can’t Trust the Trend, Recheck the Signals

Before you change the program, confirm that what you’re measuring is accurate.

• Is the sample location giving you a true reading–or just stagnant fluid?
• Are you logging input signal data from a well-mixed main?
• Is the chemical strength known and recent?
• Did someone adjust flow, heat, or bypass settings that changed load?

In water treatment, chemistry doesn’t drift randomly. It drifts when the loop is disturbed–and when the signals aren’t strong enough to catch it in time.

How to Hold Targets with Minimal Effort

The goal of a closed loop control system isn’t to chase numbers–it’s to hold steady chemistry with minimal correction. The more consistent the loop, the less work your team has to do to keep it that way.

That means building control into the program itself: define your targets clearly, select treatment products that perform predictably, and document every control action and result. Then the loop begins to self-stabilize–even without a fully automated system.

What a Stable Control Program Looks Like

Good chemistry control starts with a few key elements:

• Set points that make sense. Don’t pick targets just because they sound safe–pick them because they’re right for your system’s metallurgy and risk profile.
• One system variable per risk. If you’re managing corrosion, define your primary indicator (nitrite, molybdate). For freeze protection, it’s glycol %. For microbial activity, it might be dipslides or ATP.
• Consistent test methods. You can’t trust the feedback signal unless you know where the sample came from, how it was pulled, and when.
• Small, measured doses. Overshooting is worse than reacting slowly. Log each controller output and track what happened next.

Over time, a well-managed loop control system shows a clean cause → effect → confirmation path: the same control signal applied to the same disturbance results in the same correction.

When Automation or Monitoring Makes Sense

Automation doesn’t replace good loop design–it enhances it.

In systems with heavy demand or critical uptime–like data centers, hospitals, or campuses–automation can close the loop faster and reduce risk.

Examples of automation in closed loops:

• Conductivity, pH, or temperature sensors with local alarms
• Glycol concentration monitoring with blend stations
• Motorized dosing valves (the final control element) tied to sensor inputs
• Cloud-based service dashboards that alert on trend deviations

What these systems do well is reduce response time. They spot the error signal quickly and trigger the right control signal–either an automatic dose or a service call. If you want to evaluate if this makes sense for your site, explore our remote monitoring solutions.

What Doesn’t Need Full Automation

Not every closed loop system justifies a fully automatic control system. Many chilled water loops run with only monthly testing and minor adjustments. The key is knowing your baseline–and watching for signs you’re off track.

Signs your system may not need automation:

• Small volume, stable load
• No history of corrosion or drift
• Easily accessible for routine service
• Minimal makeup water or glycol changes

Even in these systems, following the feedback control loop–test, compare, adjust, confirm–is what keeps them clean, efficient, and predictable.

Troubleshooting with Signal-Based Control

Even the best treatment program can fall out of range. A closed loop control system doesn’t prevent chemistry drift–it helps you catch it early and correct it fast.

The key? Think in terms of signals: target, reading, result. These show you whether your system is responding, or just drifting further from control.

Step 1: Read the Signals in Order

1. Reference input – What’s your set point? Is it still right for your loop?
2. Input signal – Where did you take the sample? Was it mixed? Calibrated?
3. Measured output – What was the actual test result?
4. Error signal – What’s the difference between target and reading?
5. Control action – What did you do in response? Dose? Flush? Adjust?
6. Controller output – How much did you add or change?
7. Output signal – What result did that action produce?
8. Feedback signal – Does the next sample show correction?

This process defines your feedback control system. It doesn’t have to be automated–but it has to be consistent.

Step 2: Identify the Cause

Low inhibitor + rising iron

• Likely inputs: oxygen ingress, makeup dilution
• Fix: pressurize expansion tank, verify no glycol leaks, apply correction dose

pH is unstable or drifting

• Likely inputs: degraded glycol, unbalanced dosing
• Fix: verify glycol condition, confirm chemical feed concentration, add pH buffer if needed

Microbial growth in a sealed system

• Likely inputs: stagnant branches, ineffective biocide
• Fix: purge low-flow legs, verify flowrates, confirm residual biocide level

Inhibitor swings with small feed

• Likely root cause: oversized pump, poor mixing
• Fix: reduce stroke or pump size, relocate injection point

Step 3: Tighten the Loop

Use the same logic as you would with any control system: clean signals and small adjustments.

• Set tighter set point windows that reflect real risk
• Validate pump sizing and feed concentration (adjust controller output if needed)
• Adjust feed volume or rate to avoid overshooting the desired output
• Let the system mix before re-testing – avoid false corrections
• Record each system input that could shift chemistry: repairs, make-up volume, chemical concentration

The best loop control systems correct with small, repeatable moves–not large course-corrections that create instability.

How You Know It’s Working

A stable closed loop system shows:

• Predictable reactions to small feed doses
• Slow, steady trends back to target
• No major swings in pH, nitrite, glycol
• Reduced chemical consumption over time
• Consistent readings from test to test

When those signs disappear, check the loop–not just the chemistry.

Quick Reference: Control Terms in Water Treatment

• Reference input / set point: Your target range (e.g., 800–1000 ppm nitrite).
• Input signal / measured output: Test result or sensor reading.
• Error signal: Difference between actual and target.
• Control signal / controller output: Pump speed, stroke, or feed volume.
• Final control element: The chemical feed pump or valve.
• Output signal / system output: What chemistry looks like after dosing.
• Feedback signal: The retest confirming correction.
• Process output: System performance (e.g., corrosion, flow stability) as a result of chemistry.

Each element in a loop control system supports the next. The cleaner your inputs, the more predictable your results.

Tying the Loop Together

A well-managed closed loop control system doesn’t need to be complex—it just needs to be consistent. When your loop holds chemistry near its set points, you get fewer surprises: consistent readings, low corrosion, and stable system performance. That’s your actual output—not just test results, but system behavior.

When things drift, it’s not always about chemistry. It could be a missed top-off, a mechanical adjustment, or an unlogged system input. That’s why every control action–manual or automated–should tie back to a clear reference input and produce a measurable output signal. The feedback signal confirms whether the system responded as expected.

You don’t need to draw a block diagram or run control theory to manage water treatment. But you do need to understand how each adjustment (controller output) affects water quality–and whether that result matches your desired output condition.

R2J builds water treatment programs that simplify this loop: clean signals, clear targets, and actions that keep your system running steady.

Why All This Matters

A well-run closed loop system isn’t reactive–it’s steady. When the program is dialed in, your system responds the same way to the same treatment every time. That’s what control really means: less guesswork, fewer surprises, and equipment that lasts longer.

If your loop isn’t behaving predictably–or if you’ve seen repeat corrosion, chemistry swings, or erratic test results–R2J can help.

Schedule a loop assessment or request support. We’ll help you get back to target and stay there.

---
