Biofilm Control in Water Systems: Risks and Remediation

What Is Biofilm – and Why It Matters for Water Systems

Biofilm is a dense, slimy layer of microbial colonies that forms on surfaces exposed to water over time. It’s not just a cosmetic issue – in potable water systems, plumbing, cooling towers, and other infrastructure, biofilm can shelter Legionella bacteria, disrupt water quality, and increase operating risk. For commercial facilities, it’s a hidden but persistent threat that requires continuous control, not just one-time cleaning.

What makes biofilm so difficult to manage is its structure. Once microbial communities attach to a surface, they secrete a sticky matrix known as extracellular polymeric substances (EPS). This protective layer anchors the bacteria to pipe walls, filters, and other surfaces – shielding them from disinfectants, heat, and flow. That’s why standard chlorination or flushing often fails to fully remove it.

In high-risk buildings, biofilm becomes a gateway for dangerous waterborne pathogens. It’s also one of the most common contributing factors in Legionella outbreaks, especially when water stagnates or temperatures fall into the growth range (77°F–113°F / 25°C–45°C).

Where Biofilm Builds – and Why It’s a Long-Term Risk

Biofilm in water systems can form nearly anywhere, but it thrives in stagnant or low-flow environments where nutrients are present. This includes:

• Dead legs and underused piping
• Hot water recirculation systems
• Potable storage tanks
• Cooling towers and humidifiers
• Rough pipe surfaces or corrosion pitting

Over time, the biofilm becomes a microbial stronghold, hosting a mix of bacteria, fungi, and even protozoa – many of which are resistant to standard disinfection protocols.

Common Biofilm Locations by System Type

These locations align with known risk zones for biofilm-protected Legionella pneumophila growth.

Why Disinfection Isn’t Enough

Chemical disinfection alone – even with high concentrations – often doesn’t penetrate the EPS layer that protects bacteria inside the biofilm. Over time, the biofilm becomes an active biological system, exchanging nutrients, adapting to its environment, and becoming harder to eliminate.

That’s why biofilm control requires more than chlorine spikes or occasional flushing. It takes a combined program of physical, chemical, and procedural controls, all rooted in ongoing water testing, documentation, and system monitoring.

This is where a proactive water treatment partner makes the difference. With proper biofilm detection, trending, and remediation methods, facilities can get ahead of the problem – instead of reacting to failed disinfection or positive Legionella results.

How Biofilm Forms in Water Systems

Biofilm formation doesn’t happen all at once. It’s a multi-stage process that begins with surface attachment and ends with a fully developed microbial community. These stages play out across pipe walls, tank surfaces, and fittings–anywhere water moves or stagnates.

The 5 Stages of Biofilm Formation:

1. Initial Attachment
   Free-floating bacteria encounter a surface (e.g., copper, PVC, galvanized steel) and adhere loosely through van der Waals forces or weak electrostatic interactions.
2. Irreversible Adhesion
   Cells secrete extracellular polymeric substances (EPS), creating a sticky matrix that strengthens the bond and forms the basis of the biofilm structure.
3. Colonization
   Other microbes (including fungi and gram-negative bacteria) join the structure, creating a complex microbial community that begins nutrient exchange and chemical signaling.
4. Maturation
   The biofilm thickens, develops internal channels for water flow, and becomes increasingly resistant to heat and chemical disinfection.
5. Dispersion
   Clumps of biofilm detach and travel downstream – colonizing new surfaces and repeating the cycle in other parts of the water distribution system.

Why EPS Makes Biofilm So Hard to Remove

EPS – the extracellular polymeric substances secreted during biofilm growth – serve multiple protective roles:

• Shield microbes from oxidizing agents like chlorine or monochloramine
• Buffer against pH changes and temperature swings
• Physically block penetration of disinfectants or antimicrobial agents
• Trap organic matter and debris, further fueling microbial growth

This “slime layer” is the reason why biofilm removal requires more than one-time flushing or periodic disinfection. In most cases, aggressive biofilm control measures must be paired with long-term water management planning.

Conditions That Accelerate Biofilm Growth

Biofilm thrives in certain environmental conditions. Common risk factors include:

Understanding these factors is key for preventing Legionnaires’ disease and other waterborne infections. Biofilm doesn’t just appear – it takes root where oversight is missing.

Detecting and Assessing Biofilm in High-Risk Water Systems

Once biofilm is established in a water system, it becomes difficult to eliminate and nearly impossible to manage without detection. This is especially critical in drinking water systems, healthcare facilities, and large buildings, where Legionella bacteria and other waterborne pathogens pose a direct risk to public health.

Visual and Field Indicators of Biofilm Growth

Not all biofilm is visible – in fact, most isn’t. However, some physical signs may indicate biofilm formation, especially in areas with frequent microbial exposure or reduced water flow:

• Slime buildup on pipe interiors or fittings
• Persistent discoloration around outlets or shower heads
• Increased chlorine demand
• Decreased temperature control
• Stale odor or taste in potable water

None of these symptoms are conclusive, which is why field testing is required to confirm and monitor biofilm levels.

Common Biofilm Testing Methods

Testing should focus on dead legs, aerators, showerheads, and low-circulation zones. For buildings with increased risk (healthcare, elder care, hotels), testing should occur at least quarterly.

When Biofilm Threatens Public Health

Biofilm in water systems doesn’t just affect operations – it can host dangerous pathogenic microorganisms, including:

• Legionella pneumophila (linked to Legionnaires’ disease and Pontiac fever)
• Pseudomonas aeruginosa (causes wound infections and serious complications in those with weakened immune systems)
• Mycobacterium avium complex (MAC), which affects vulnerable populations

These organisms survive and thrive within the biofilm structure, protected from chemical disinfection, flushing, or even high heat. This is why even chlorinated drinking water systems can test positive for Legionella.

The World Health Organization, ASHRAE, and CDC all recommend proactive risk assessment for biofilm-prone systems, particularly in:

• Potable water networks in large buildings
• Systems serving medical microbiology environments
• Older piping with poor flow balance or outdated pipe materials

How to Interpret Biofilm Risk in a Facility

Whether you’re maintaining a commercial tower or overseeing a hospital campus, you can assess biofilm control priorities with a simple matrix:

Explore R2J’s Legionella Risk Assessment for guidance on evaluating your site’s vulnerability.

Setting a Baseline for Control

Biofilm control starts with understanding your baseline: Where is the contamination? How severe is it? Is Legionella present?

If even low-level growth is confirmed, the next step is a formal response plan. That includes site-specific remediation, system disinfection, long-term water quality monitoring, and preventive water management strategies to avoid future regrowth.

Where Biofilms Thrive in Buildings and Equipment

Biofilms don’t discriminate by system type – if there’s water, surface area, and time, biofilms form. And in large buildings, those conditions show up frequently across potable water systems, cooling towers, and distribution lines.

High-Risk Locations for Biofilm Formation:

• Dead legs in piping networks
• Mixing valves with inconsistent temperature
• Storage tanks and expansion vessels
• Heat exchangers, especially under low flow
• Showerheads, faucet aerators, and drain pans
• Point-of-use filters in healthcare and lab settings

Once microbial communities are established, they attach to inner pipe walls, grow beneath scale or corrosion, and embed into potable water systems where they can evade chemical disinfection and flushing.

The more complex the plumbing, the more likely biofilm in water is present – especially in large buildings, hospitals, hotels, or senior living facilities.

How Building Design Affects Biofilm Growth

Biofilm growth isn’t just about bacteria – it’s about design. A few environmental factors make buildings especially vulnerable to contamination:

Buildings constructed before modern water safety codes often include these risk factors by default – which is why remediation must often go beyond treatment alone.

Healthcare, Hotels, and Senior Living = Higher Risk

Facilities serving immunocompromised or elderly populations face greater risk from waterborne pathogens. Even low levels of Legionella spp. or other pathogenic microorganisms can trigger illness.

• Hospitals: Biofilm can contaminate sterile water points, showers, or decorative water features.
• Hotels: Fluctuating occupancy and long pipe runs = water stagnation.
• Senior living: Low-flow fixtures and tepid water promote microbial activity.

In these settings, managing biofilm growth is not just a plumbing issue – it’s a public health obligation.

Facilities managers in these sectors should integrate R2J’s Water Management Plans to align treatment and monitoring with CDC/ASHRAE guidance.

The Role of Temperature in Biofilm Risk

Bacterial biofilms form fastest in warm, slow-moving water. Unfortunately, this overlaps with standard hot water recirculation temperatures (90–110°F), especially when return loops or mixing valves fail.

• Temperatures below 77°F slow biofilm growth but increase the risk of cold water contamination
• Temperatures above 113°F reduce viable Legionella pneumophila growth, but must be maintained consistently

Inconsistent heat, poorly set setpoint thermostats, and long recirculation delays allow biofilm formation to restart again and again.

When to Consider Biofilm Remediation

Even with best practices in place, persistent issues – like discoloration, odors, low residuals, or Legionella positives – may signal deeper biofilm contamination in the system.

Remediation may include:

• Thermal disinfection or pasteurization
• Hyperchlorination with system flushing
• Monochloramine or hydrogen peroxide application
• Physical pipe cleaning or fixture replacement

Learn more about R2J’s Legionella Remediation Services for a targeted biofilm removal strategy.

Core Strategies for Biofilm Control and Prevention

Once biofilm is present, eliminating it entirely from water distribution systems is difficult – which is why prevention is always the better approach. Facilities that proactively manage water chemistry, flow conditions, and monitoring protocols have significantly fewer biofilm growth issues over time.

Prevention = Design + Disinfection + Monitoring

An effective biofilm prevention strategy includes:

• Balanced water flow: Avoiding dead legs and stagnant zones
• Water temperature control: Keeping hot water above 120°F and cold water below 68°F where safe and practical
• Routine flushing: High-velocity flushing to remove loose biofilm and sediment
• Pipe material selection: Choosing smooth, corrosion-resistant materials that discourage bacterial attachment
• Biocide treatment: Using antimicrobial agents that reduce microbial activity without damaging infrastructure
• pH control and corrosion inhibitors: Maintaining chemical balance to prevent pipe degradation and biofilm anchors

Each of these steps works best when tied into a formal water safety protocol. For regulated facilities, this often includes documentation aligned with ASHRAE 188, CDC guidelines, or local health codes.

Water Treatment Options for Biofilm Control

Chemical and physical control measures can greatly reduce biofilm risks, especially when matched to the specific risk factors and usage patterns of a building.

Selecting the right antimicrobial agent depends on system design, population served, water chemistry, and past performance data. A risk assessment is recommended to align your treatment approach with your operating environment.

System Design Considerations That Reduce Biofilm Risk

Many potable water systems were never designed with biofilm control in mind – but small retrofits and procedural changes can dramatically improve outcomes.

Design modifications to consider:

• Eliminate or re-route dead legs
• Improve circulation with booster pumps in low-flow areas
• Insulate and monitor cold water lines to prevent condensation
• Replace corroded or biofilm-prone materials
• Install sampling ports in high-risk areas to track microbial trends

Some systems may also benefit from installing smart monitoring tools that alert teams when biocide levels dip, temperatures drift, or water quality indicators suggest early-stage biofilm formation.

Integrating Water Management Plans

For many facilities, the missing link in biofilm control isn’t chemistry – it’s consistency. Water Management Plans (WMPs) provide a structured framework for:

• Documenting system design and flow schematics
• Establishing control measures for critical control points
• Setting monitoring frequency and response protocols
• Logging test results and maintenance records
• Assigning accountability across departments

R2J can support your facility in implementing or reviewing a compliant Water Management Plan to ensure system-wide protection against waterborne germs, biofilm in water, and Legionella growth.

When Biofilm Remediation Becomes Necessary

In some systems, preventive control isn’t enough. If routine water testing shows recurring Legionella positives, or if specific areas like shower heads, tank inlets, or heat exchangers show persistent fouling, you may be facing entrenched biofilm in water systems that requires formal remediation.

Signs It’s Time for Biofilm Removal:

• Continued presence of Legionella bacteria after disinfection
• Discoloration, odor, or scale buildup in potable water systems
• Dips in biocide levels with no known cause
• Unexplained pH instability
• Known contaminated water events (repairs, backflow, etc.)
• Outbreaks of Pontiac fever or Legionnaires’ disease

These are not just operational issues – they may carry public health implications, especially in regulated environments like healthcare or long-term care facilities.

Options for Biofilm Remediation

Depending on system condition and risk factors, there are several escalation paths:

A professional risk assessment will determine which method matches your system’s needs – and whether biofilm removal can succeed without compromising service continuity.

How to Execute a Remediation Plan

Remediation should always be planned and documented, not reactive. A clear, validated approach includes:

1. Pre-flush and baseline sampling
   Establish microbial and chemical conditions before intervention.
2. Apply disinfectant or thermal treatment
   Follow protocols by ASHRAE, AWWA, or manufacturer guidelines.
3. Post-treatment flushing
   Fully circulate clean water to remove dislodged debris and dead bacteria.
4. Confirmatory sampling
   Re-test for Legionella bacteria, pH, biocide levels, and water quality.
5. System stabilization and monitoring
   Resume standard control and testing per WMP recommendations.

When to Escalate to Full-System Review

If a system continues to test positive for waterborne pathogens after multiple interventions – or if legionella infection risk increases due to high building complexity – it may be time to:

• Re-evaluate pipe materials or flow design
• Increase monitoring frequency
• Add remote sensors or automated disinfection control
• Rebuild parts of the system with a biofilm-resistant design

Remediation is only effective when paired with improved control logic, consistent documentation, and site-specific strategy. R2J’s team of water treatment specialists can assist with evaluating systemic vulnerabilities and long-term biofilm control planning.

Long-Term Biofilm Prevention and Water System Resilience

Removing biofilm is one thing – keeping it from coming back is the real challenge. For potable water systems in commercial, institutional, or healthcare environments, the focus should always shift from remediation to effective management.

Why Biofilm Control Requires Ongoing Strategy

Biofilms form in layers. Even if surface contamination is removed through chemical disinfection or heat, dormant bacteria can remain embedded in pipe corrosion, old pipe materials, or low-flow zones. Unless these areas are monitored and addressed routinely, biofilm growth restarts – often faster than before.

That’s why long-term success hinges on:

• Water quality monitoring: Frequent checks for pH, oxidant demand, temperature, and microbial activity.
• Control measures tied to results: Adjustments to dosing, flushing, or infrastructure when data trends shift.
• Training and communication: Engineering teams should understand where biofilm in water can originate and how to identify early signs of fouling.

Legionella Control Programs: Why Biofilm is the Core Issue

The most common waterborne pathogens tied to biofilm are Legionella pneumophila and related Legionella spp. These bacteria hide within biofilm clusters, shielded from disinfectants and heat.

When biofilm structure matures, it becomes a micro-ecosystem that even houses protozoa – which can carry Legionella internally, releasing them as viable infectious agents.

This is why even well-chlorinated drinking water systems sometimes test positive for Legionella: surface testing isn’t enough. Control must account for:

• Surface-attached growth
• Low-flow stagnation areas
• Warm water pipes with scale or sediment

Biofilm doesn’t cause legionella infection directly – but it creates the conditions that allow it to spread through contaminated water aerosols in cooling towers, decorative fountains, and shower heads.

Implementing a Biofilm-Focused Water Management Plan

A proper Water Management Plan (WMP)should treat biofilm control as a central goal – not an afterthought. This means aligning your WMP with:

• CDC’s Legionella toolkit
• ASHRAE Standard 188
• World Health Organization guidance on waterborne pathogen prevention

Key Elements to Include:

Learn how R2J supports facility teams in drafting and updating Legionella Prevention Plans with biofilm risk fully accounted for.

Revisiting the Risk Profile Over Time

A WMP is not a set-it-and-forget-it tool. Because biofilm formation depends on dynamic conditions – seasonal flow, water usage, maintenance work – risk must be revisited regularly.

• Quarterly reviews: Check trends in microbial communities, pH, or oxidant demand
• After major plumbing changes: Biofilm risk often increases post-renovation
• Post-positive Legionella test: Trigger sitewide assessment of biofilm control measures

Even in healthy people, exposure to aerosolized Legionella bacteria can cause mild flu-like illness. In weakened immune systems, consequences range from wound infections to serious complications. Facilities that prioritize public health can’t afford to treat biofilm as a background issue.

Final Recommendations for Biofilm Prevention and Public Health Risk Reduction

Biofilm contamination isn’t just a nuisance. In commercial and institutional water systems, biofilm is a root cause of corrosion, Legionella growth, disinfection failure, and repeat compliance issues. Facilities that take it seriously avoid the downstream consequences: positive tests, public health complaints, and expensive remediation.

To protect your potable water systems, proactive management is key. Effective biofilm control isn’t a one-time event – it’s a continuous loop of risk assessment, monitoring, and corrective action.

What Long-Term Success Looks Like

A strong biofilm management program includes:

• Defined setpoints for temperature, disinfectant levels, and pH
• Ongoing testing for biofilm growth, oxidant decay, and pathogenic microorganisms
• Preventive treatment that adjusts with seasons, water flow, and system age
• Aligned procedures between engineering, maintenance, and safety teams

When executed well, this leads to stable water quality, reduced fouling, and a dramatically lower likelihood of Legionnaires’ disease, Pontiac fever, or other waterborne illnesses.

Common Mistakes That Undermine Control

Some facilities do everything right – except consistently. Biofilm often reappears after teams neglect:

• Seasonal testing (pre-winter, pre-cooling season)
• Flushing protocols in low-use areas
• Equipment inspections in dead ends, risers, and storage tanks
• Monitoring microbial indicators during construction or after major repairs

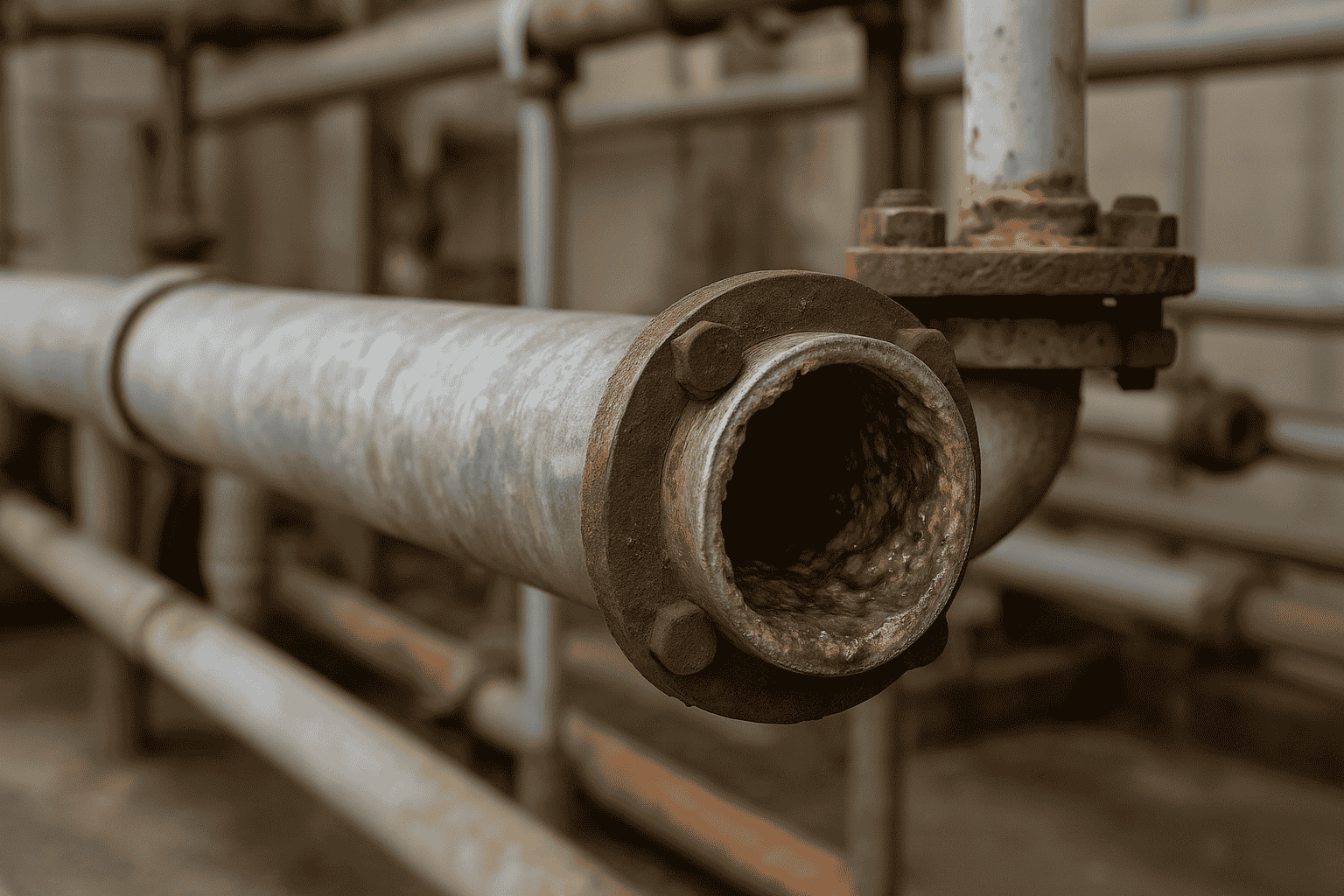

Even if you haven’t had a legionella infection or regulatory trigger, biofilm can still damage systems silently. It builds inside water pipes, behind scale, and in older pipe materials, degrading efficiency and creating greater risk with time.

Start Working With The Experts

If you’ve dealt with repeat biofilm in water events, or your potable water testing keeps trending in the wrong direction, R2J can help.

Our Certified Water Technologists (CWTs) design and maintain water treatment programs tailored to:

• Large buildings with complex plumbing
• Healthcare and senior living facilities with vulnerable populations
• Industrial operations requiring water reliability and documentation
• Buildings under compliance pressure from public health or local codes

From biofilm removal to long-term prevention strategies, R2J helps you stay in control. Contact us to schedule a risk assessment or get help with your water system.

Frequently Asked Questions (FAQs)
